Power supply vehicle series

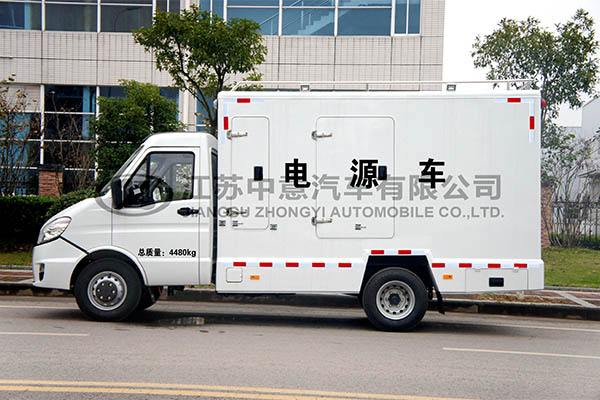

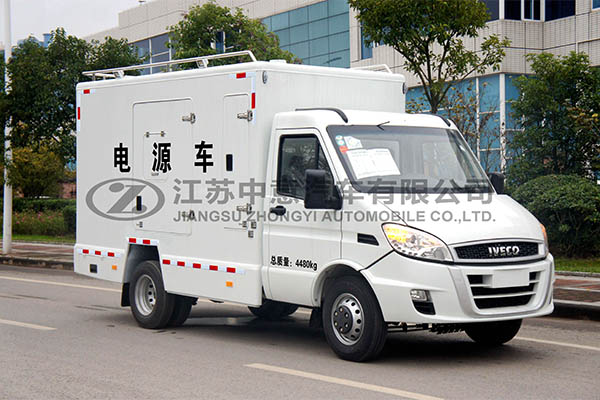

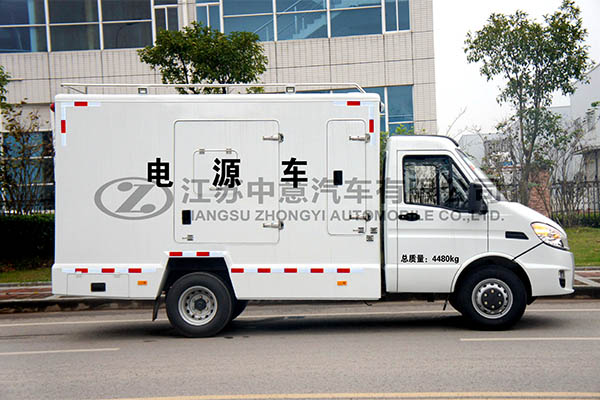

Zhongyi SZY5045XDYN5 power supply vehicle

Overall dimensions (length * width * height) (mm) : 5980*2000*3150

Total mass (kg) : 4480

Blue license plate, C license

This vehicle is modified from the Iveco NJ1045DFCZ Class II chassis. It is equipped with a 20-50KW generator set for emergency power supply and can be optionally fitted with a top lifting lighting lamp for emergency illumination.

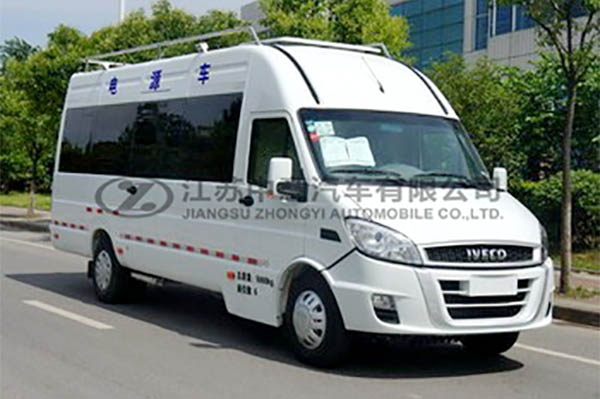

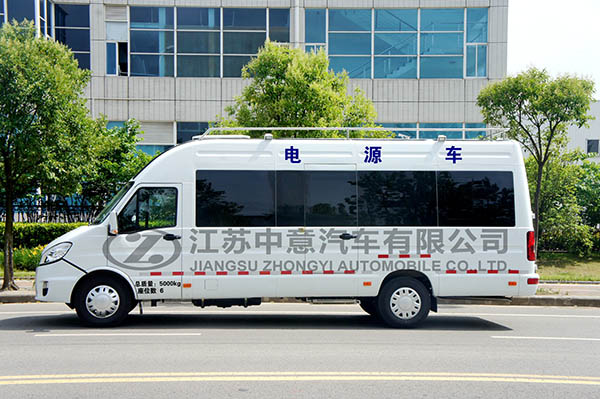

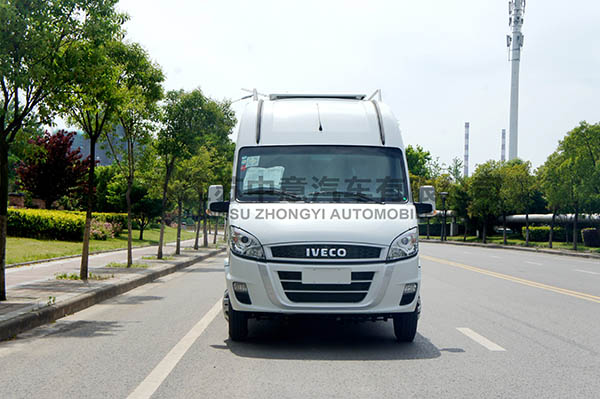

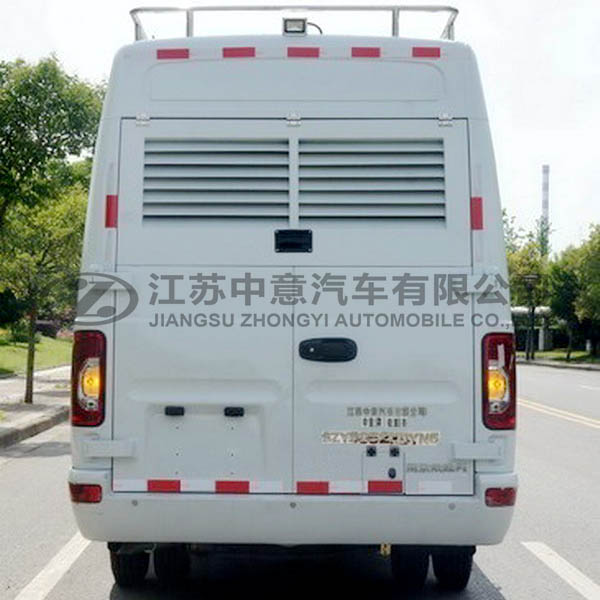

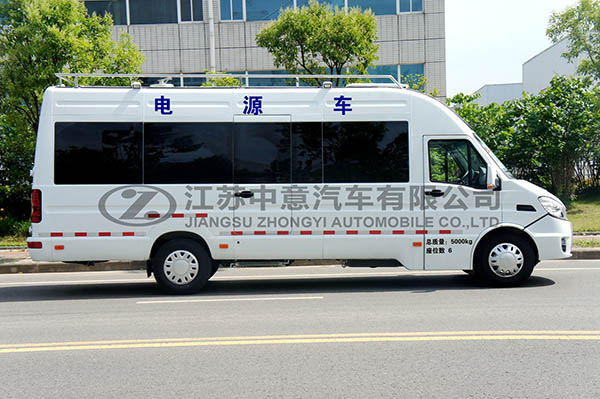

Zhongyi SZY5052XDYN5 power supply vehicle

Overall dimensions (length * width * height) (mm)：7133*2000*2960

Total mass (kg)：5000

This vehicle is a bus-type power vehicle modified from an Iveco whole vehicle. It is equipped with sound insulation partitions inside and a 20-50KW generator set at the rear. An optional top lifting lighting lamp is installed, which can be used for emergency lighting

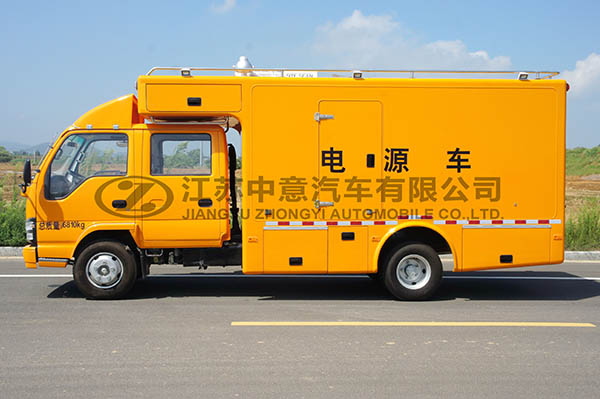

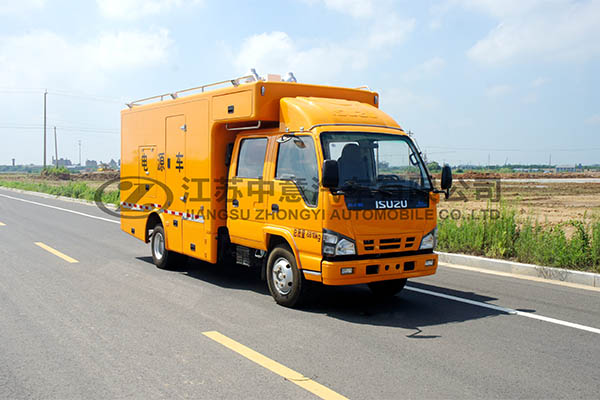

Zhongyi SZY5072XDYQ power supply vehicle

Overall dimensions (length * width * height) (mm)：6910*2010*3300

Total mass (kg)：6810

number of people：3+2

This vehicle is a power supply vehicle modified from the Qingling double-row QL1070A5KWY chassis. It can be equipped with a 50-120KW generator set or battery pack inside for emergency power supply.

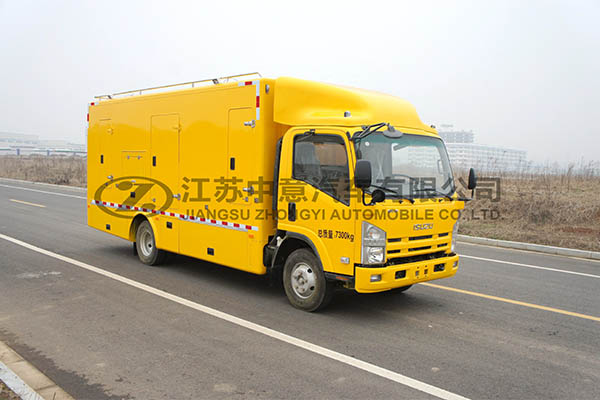

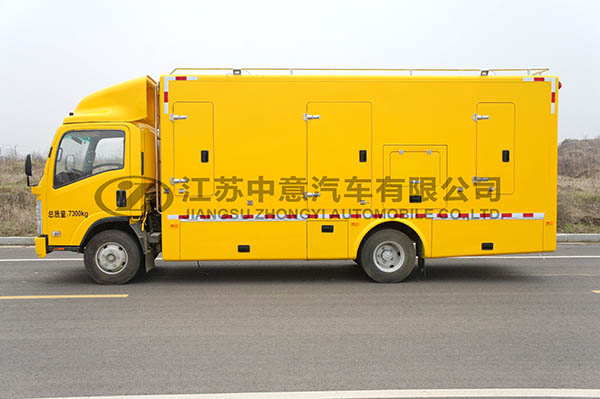

Zhongyi SZY5075XDYQ power supply vehicle

Overall dimensions (length * width * height) (mm)：7300*2150*3300

Total mass (kg)：7300

This vehicle is modified from the Qingling widened 600P chassis QL1072A5KAY. It can be equipped with an 80-150KW generator set for emergency power supply and can be optionally fitted with a top lifting lighting lamp.

Zhongyi SZY5105XDY5 power supply vehicle

Overall dimensions (length * width * height) (mm)：9100*2340*3970

Total mass (kg)：10000

This vehicle is modified from the Qingling QL1100A8PAY chassis and can be equipped with a 200KW generator set or UPS for emergency power supply. Optional top lifting lighting fixture.

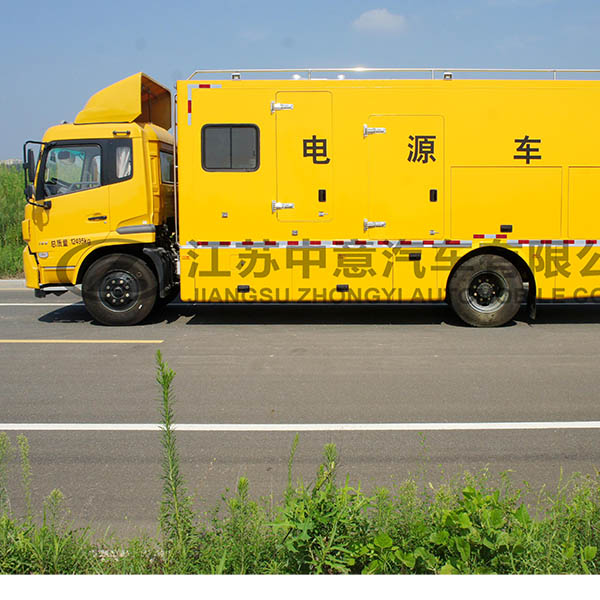

Zhongyi SZY5120XDYD5 power supply vehicle

Overall dimensions (length * width * height) (mm)：9400*2550*3980

Total mass (kg)：10000

This vehicle is modified from the Dongfeng DFL1120B21 chassis and can be equipped with a 100-150KW generator set. It can also be optionally equipped with a top lifting lighting lamp for emergency power supply.

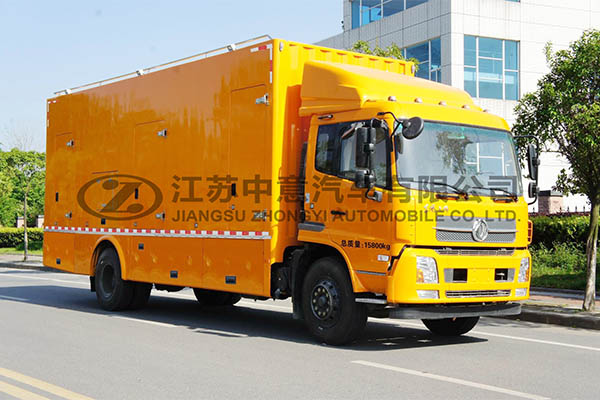

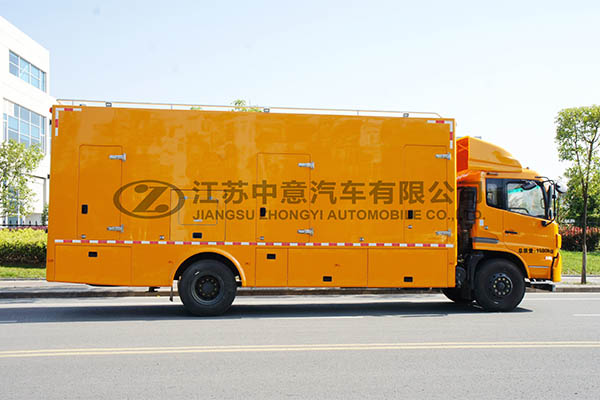

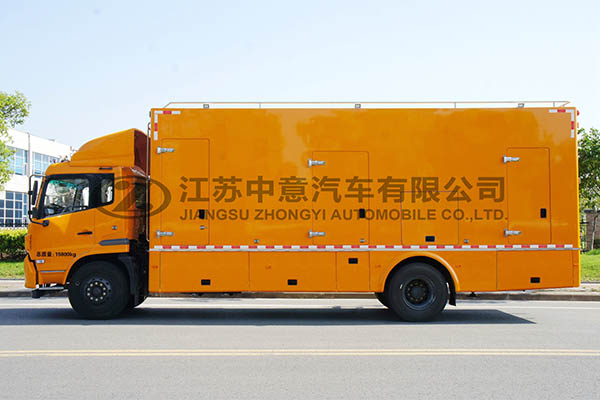

Zhongyi SZY5168XDYD5 power supply vehicle

Overall dimensions (length * width * height) (mm)：9940*2540*3870

Total mass (kg)：15800

This vehicle is modified from the Dongfeng DFL5160XXYBX2V chassis and can be equipped with a 200-400KW generator set or UPS battery, etc., for emergency power supply. It can also be optionally equipped with a top lifting lighting lamp.

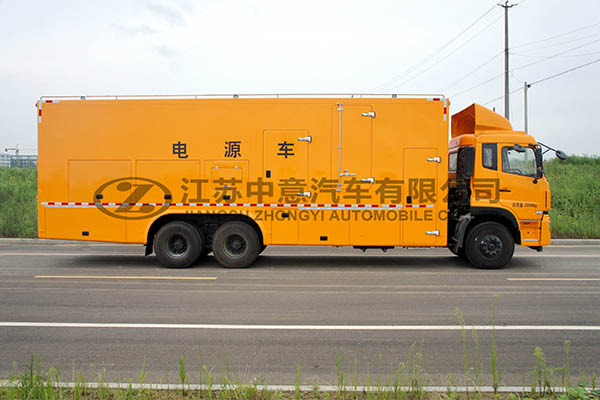

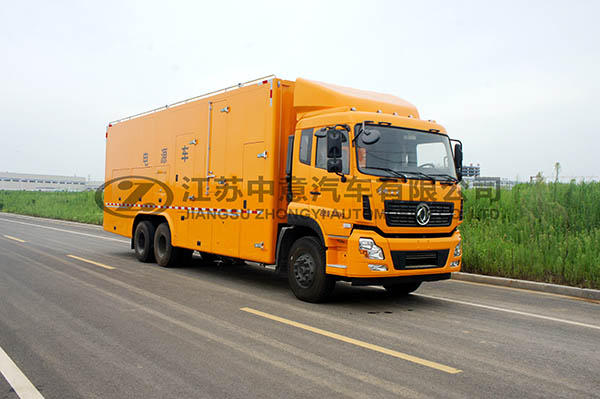

Zhongyi SZY5250XDYD5 power supply vehicle

Overall dimensions (length * width * height) (mm)：11960*2550*3980

Total mass (kg)：25000

This vehicle is modified from the Dongfeng Tianlong 25-ton chassis DFL1250A13 and can be equipped with a 500-800KW generator set inside. It can be used for emergency power supply.

Zhongyi SZY5251XDYQ power supply vehicle

Overall dimensions (length * width * height) (mm)：11800*2540*3980

Total mass (kg)：25000

This vehicle is modified from a 25-ton Qingling chassis QL1250WTFZY and can be equipped with a 500-800KW generator set inside. It can be used for emergency power supply.
